Advanced Cutter for Minerals, Rocks and Geological Specimens

GEOCUT consists of a cast aluminium base on which the motor and the working space are provided in the form of two separate housing. A large window of Lexan and a sealed 12V lamp in the cutting chamber allow precise observation of the cutting process at an optimum degree of safety. A large feed table located in the cutter’s generous work area can accommodate a variety of different clamping devices which need to be selected.

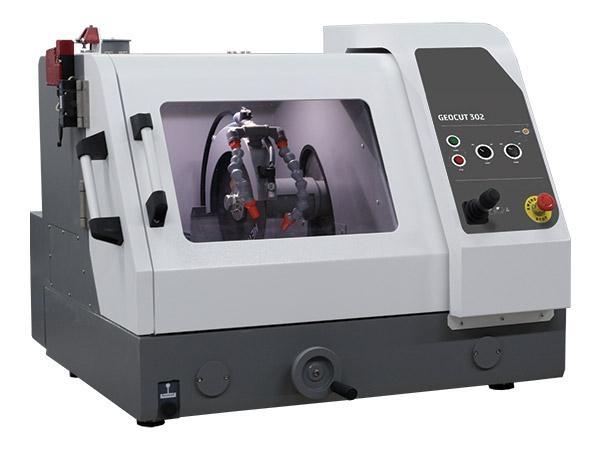

geological cutting

The feed table provides a long travel depth making the GEOCUT ideal for cutting long or deep samples in a single pass. X-Y Cross table is available as standard for parallel and serial cutting. Cooling water recirculating system is an optional part of GEOCUT. Cooling is effected by two water jets located on both sides of cutt-off wheel.

geological rock cutting

  • Advanced Cutter for Minerals, Rocks and Geological Specimens
  • Cutting capacity upto 100 mm in diameter
  • Uses diamond blade 250 / 300 mm
  • Linear Table Feed Cutting method
  • X-Y table bed with cutting cross feed
  • Various Clamping systems available

GEOCUT cutting machines have the highest safety standards. The interlocking safety device does not allow the motor to be started unless the hood is closed. The hood can not be opened before the cutting motor is stopped. The electronic brake system, which is a standard feature, brings the cutter to a quick full stop in seconds after it has been switched off.

Many petrographic cutting applications require the sectioning of a specimen from an irregular shaped sample. The small size or irregular sample shape can create positioning and clamping difficulties for the operator. To overcome these difficulties, Kemet offers a number of special clamping devices for use with GEOCUT petrographic cutter.

Model GEOCUT
Chop Cutting, Z Axis Manual
Table Feed Cutting, Y Axis Manual
Parallel Cutting, X Axis Manual
Max. Wheel Diameter, (mm) Ø300
Max. Cutting Capacity (mm) Ø110
(HxD) 70 x 200
Y Axis Travel, (mm) 220
X Axis Travel, (mm) 95
Z Axis Travel, (mm) 125
T-Slot table dimension, mm (WxD) (395+95) x 275
T-Slot dimension, (mm) 12
Cutting Power kW (S1) 4
Wheel Speed, rpm 2850
Size, WxDxH, (cm) 90 x 94 x 66.5
Weight, (kgs) 250
Cooling Unit, (lt) 55

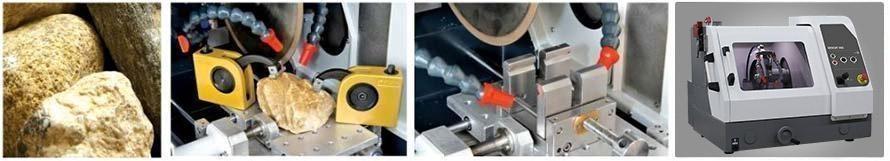

geological cutting for specimens

Accessories for Petrography

Quick Clamping Device for round petrographic specimens

Quick Clamping Device for
round petrographic specimens

GR 1811 for GEOCUT

Universal vise for large specimens, rocks,etc.

Universal vise for large specimens,
rocks,etc.

GR 1812 for GEOCUT

KKP 040 Vertical Clamping Device, with clamp.shoe

KKP 040 Vertical Clamping Device,
with clamp.shoe

15 05 for GEOCUT

Recirculating coolant tank, stainless steel, 55 lt. capacity, with pump, level indicator, hoses etc.

Recirculating coolant tank

GR 1394-00 for GEOCUT

Fixture for mounting specimens to glass slides for thin-sectioning

Fixture for mounting specimens
to glass slides for thin-sectioning

45 61 for GEOFIX

Hot Plate for Geofix

Hot Plate for Geofix

45 65

Cabinet for floor model

Cabinet for floor model

GR 0760 for GEOCUT
